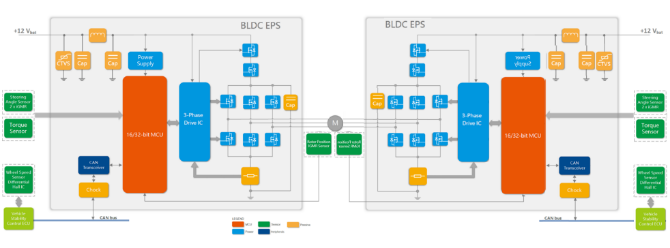

Our products cover various applications such as automotive steering, braking (One Box, Two Box), and air suspension, applied to power assisted motors, valve control, etc. in different power ranges, providing quality assurance and high reliability power solutions.
Solutions
Our Products
| Select | AKS Part Number | Status | Package | Cfg. | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ@10V(mΩ) | RDSon_Max@10V(mΩ) | RDSon_Typ@4.5V(mΩ) | RDSon_Max@4.5V(mΩ) | CISS_Typ(pF) | COSS_Typ(pF) | CRSS_Typ(pF) | QG_Typ(nC) |
| MP | PDFN5*6 | N | 40 | 20 | 130 | 3.0 | 2.1 | 2.5 | 0.0 | 0.0 | 3055 | 862 | 29 | 36 | ||
| MP | PDFN5*6 | N | 40 | 20 | 90 | 3.0 | 2.5 | 3.5 | 0.0 | 0.0 | 1860 | 560 | 15 | 22.5 | ||
| MP | PDFN5*6 | N | 40 | 20 | 50 | 3.0 | 4.8 | 5.8 | 0.0 | 0.0 | 1860 | 560 | 15 | 23 | ||
| MP | PDFN5*6 | N | 40 | 20 | 40 | 3.0 | 4.8 | 5.8 | 0.0 | 0.0 | 1220 | 360 | 12 | 15.5 | ||
| MP | PDFN5*6 | N | 40 | 20 | 250 | 3.0 | 0.8 | 1.1 | 0.0 | 0.0 | 5810 | 1640 | 15 | 72 | ||
| MP | PDFN5*6 | N | 100 | 20 | 30 | 1.9 | 18.0 | 25.0 | 23.0 | 32.0 | 916 | 135 | 8 | 15 |
