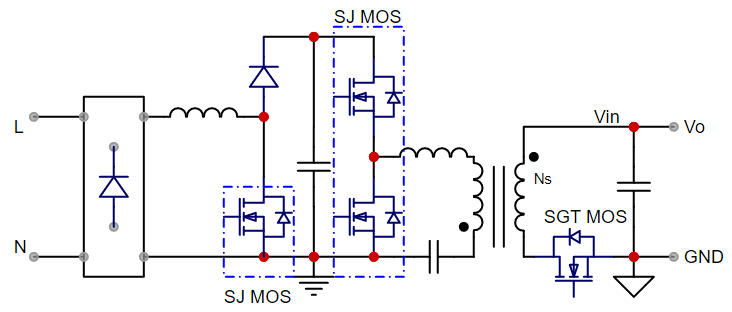

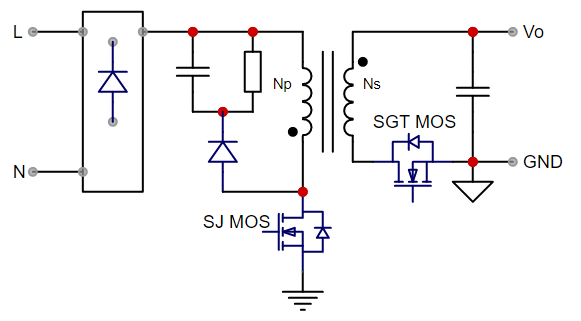

The power in PoE continues to increase, and the stability requirements are more stringent. We provide high reliability, long-life SJ MOS and SGT MOS series.
Solutions
Our Products
| Select | AKS Part Number | Status | Spice model | Package | Cfg. | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
RDSon_Typ @4.5V(mΩ) |
RDSon_Max @4.5V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| MP | - | PDFN5*6 | N | 40 | 20 | 176 | 1.5 | 1.1 | 1.3 | 1.6 | 2 | 3900 | 1460 | 32.9 | 63.1 |
Filter
| Select | AKS Part Number | Status | Spice model | Package | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| MP | - | TO-220F | 650 | ±30 | 11 | 3.5 | 300 | 360 | 841 | 45.1 | 2.8 | 23.3 | ||
| MP | - | TO-220 | 650 | 30 | 15 | 3.6 | 260 | 290 | 647 | 20 | 7 | 22 | ||
| MP | - | TO-220F | 650 | 30 | 15 | 3.6 | 260 | 290 | 647 | 20 | 7 | 22 | ||
| MP | - | TO-252 | 650 | 30 | 12.5 | 3.4 | 302 | 360 | 530 | 15 | 5.5 | 20 | ||
| MP | - | TO-220F | 650 | 30 | 12.5 | 3.4 | 302 | 360 | 530 | 15 | 5.5 | 20 | ||
| NEW | - | TO-220F | 650 | 30 | 8 | 3.5 | 510 | 600 | 338 | 13 | 5.5 | 14 | ||
| NEW | - | TO-252 | 650 | 30 | 8 | 3.5 | 510 | 600 | 338 | 13 | 5.5 | 14 | ||
| MP | - | TO-252 | 650 | 30 | 3 | 3.5 | 1250 | 1400 | 225 | 44.5 | 0.5 | 7.7 | ||
| MP | - | TO-252 | 650 | 30 | 4 | 3.5 | 1000 | 1200 | 265 | 30.4 | 0.5 | 12.2 | ||
| MP | - | TO-252 | 650 | 30 | 8 | 3.5 | 505 | 600 | 515 | 43.8 | 0.7 | 15 | ||
| MP | - | TO-220F | 650 | 30 | 8 | 3.5 | 505 | 600 | 515 | 43.8 | 0.7 | 15 | ||
| MP | - | TO-220 | 650 | 30 | 11 | 3.5 | 280 | 360 | 841 | 45.1 | 2.8 | 23.3 | ||
| MP | - | TO-220NF | 650 | 30 | 11 | 3.5 | 280 | 360 | 841 | 45.1 | 2.8 | 23.3 | ||
| MP | - | PDFN8×8 | 650 | 30 | 11 | 3.5 | 280 | 360 | 841 | 45.1 | 2.8 | 23.3 | ||
| MP | - | TO-252 | 700 | 30 | 8 | 3.5 | 540 | 600 | 515 | 43.8 | 0.7 | 15 | ||
| MP | - | TO-247-3L | 650 | 30 | 50 | 3.5 | 48 | 59 | 5270 | 122 | 8 | 133 | ||
| MP | - | TO-252 | 650 | 30 | 11 | 3.5 | 310 | 360 | 600 | 20 | 5.8 | 22 | ||
| MP | - | TO-247 | 650 | 30 | 62 | 3.8 | 34 | 41 | 6715 | 245 | 1.64 | 172 |
