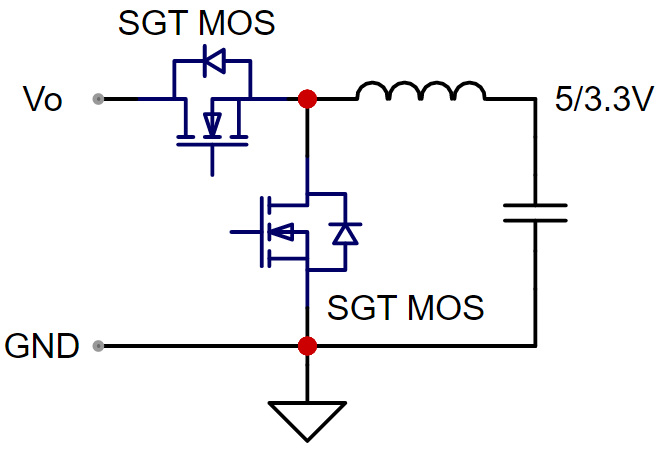

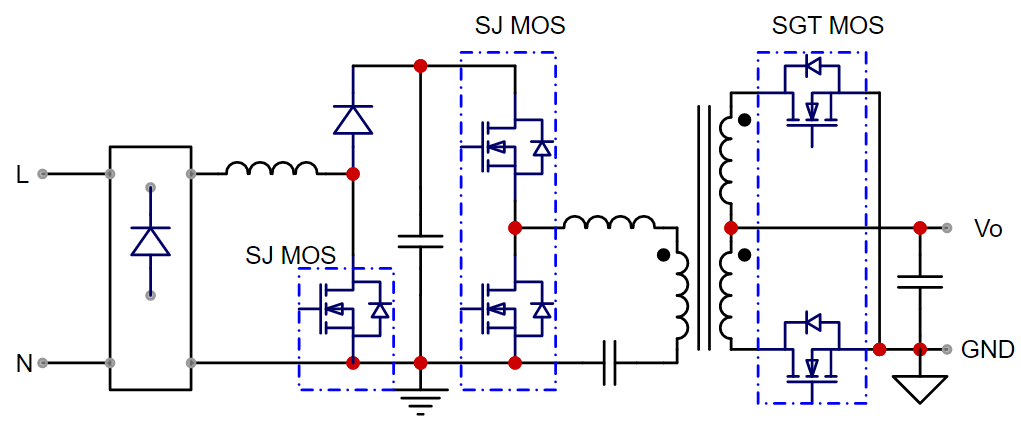

Our SGT MOS and SJ MOS series are optimized through process and technology to reduce the junction capacitance and reverse recovery characteristics, resulting in extremely low FOM (Ron * Qg), thereby reducing switch losses and conduction losses, and controlling the overall temperature rise at a lower level.
Solutions
Our Products
| Select | AKS Part Number | Status | Package | Cfg. | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ@10V(mΩ) | RDSon_Max@10V(mΩ) | RDSon_Typ@4.5V(mΩ) | RDSon_Max@4.5V(mΩ) | CISS_Typ(pF) | COSS_Typ(pF) | CRSS_Typ(pF) | QG_Typ(nC) |
| MP | PDFN5*6 | N | 30 | 20 | 200 | 1.7 | 0.9 | 1.1 | 1.5 | 1.8 | 3700 | 1500 | 90 | 60.4 | ||
| MP | PDFN5*6 | N | 40 | 20 | 115 | 1.7 | 2.0 | 2.5 | 3.0 | 3.8 | 1827 | 623 | 22 | 28.3 | ||
| MP | PDFN5*6 | N | 40 | 20 | 176 | 1.5 | 1.1 | 1.3 | 1.6 | 2.0 | 3900 | 1460 | 32.9 | 63.1 | ||
| MP | PDFN5*6 | N | 40 | 20 | 200 | 1.7 | 0.9 | 1.1 | 1.3 | 1.5 | 4988 | 1738 | 71 | 77 | ||
| MP | PDFN5*6 | N | 40 | 20 | 345 | 1.8 | 0.6 | 0.7 | 1.1 | 1.4 | 6900 | 2800 | 48 | 98 | ||
| MP | PDFN5*6 | N | 30 | 20 | 165 | 1.8 | 1.3 | 1.5 | 2.2 | 2.8 | 2655 | 1205 | 60 | 40 | ||
| MP | PDFN5*6 | N | 40 | 0 | 260 | 2.0 | 0.6 | 0.9 | 1.2 | 1.6 | 5715 | 2480 | 38 | 78 | ||
| MP | PDFN5*6 | N | 40 | 20 | 214 | 1.6 | 1.3 | 1.6 | 2.0 | 2.5 | 2955 | 1100 | 28 | 46 |
Filter
| Select | AKS Part Number | Status | Package | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ@10V(mΩ) | RDSon_Max@10V(mΩ) | CISS_Typ(pF) | COSS_Typ(pF) | CRSS_Typ(pF) | QG_Typ(nC) |
| MP | TO-247-3L | 650 | 30 | 50 | 3.5 | 48.0 | 59.0 | 5270 | 122 | 8 | 133 | ||
| MP | TO-247 | 600 | 30 | 35 | 4.0 | 56 | 68 | 3240 | 60 | 3.5 | 83 | ||
| MP | TO-220F | 600 | 30 | 11 | 4.0 | 140.0 | 180.0 | 1287 | 26 | 3 | 32 |
