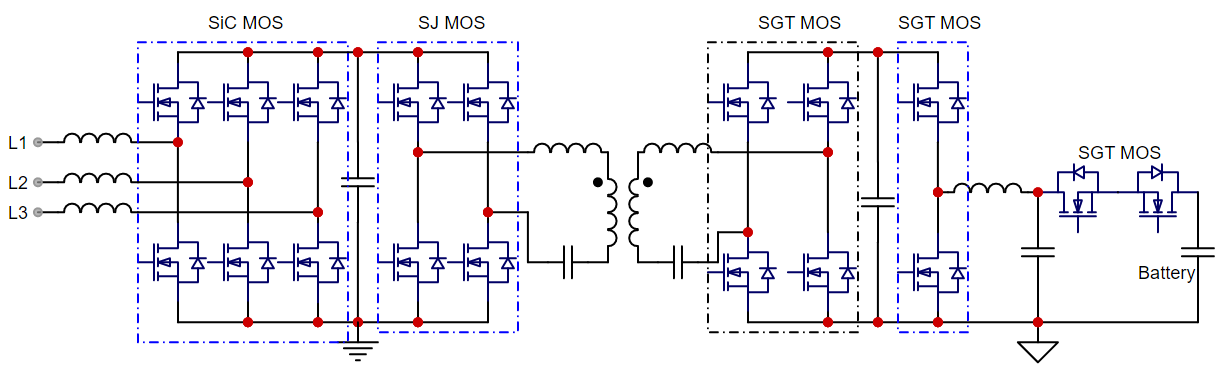

Battery formation is a key process that activates the positive and negative active substances inside the battery through specific charging and discharging processes, enabling it to have energy storage and discharging capabilities. In this process, our power devices play a crucial role, mainly including MOSFETs, IGBTs, and SiC MOSFETs.
Solutions
Our Products
| Select | AKS Part Number | Status | Spice model | Package | Cfg. | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
RDSon_Typ @4.5V(mΩ) |
RDSon_Max @4.5V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| MP | - | PDFN5*6 | N | 30 | 20 | 165 | 1.7 | 1.3 | 1.5 | 2.2 | 2.8 | 2874 | 1151 | 76 | 46.5 | ||
| MP | - | PDFN5*6 | N | 30 | 20 | 200 | 1.7 | 0.9 | 1.1 | 1.5 | 1.8 | 3700 | 1500 | 90 | 60.4 | ||
| MP | - | PDFN5*6 | N | 40 | 20 | 320 | 2.8 | 0.6 | 0.8 | - | - | 8980 | 3560 | 36 | 110 | ||
| MP | - | PDFN5*6 | N | 40 | 20 | 345 | 1.8 | 0.6 | 0.7 | 1.1 | 1.4 | 6900 | 2800 | 48 | 98 | ||
| MP | - | PDFN5*6 | N | 30 | 20 | 125 | 1.7 | 1.9 | 2.2 | 2.8 | 3.5 | 2135 | 790 | 87 | 38 | ||
| MP | - | PDFN5*6 | N | 30 | 20 | 190 | 1.7 | 1 | 1.3 | 1.5 | 2 | 4520 | 1390 | 212 | 83 | ||
| MP | - | PDFN5*6 | N | 30 | 20 | 165 | 1.8 | 1.3 | 1.5 | 2.2 | 2.8 | 2655 | 1205 | 60 | 40 | ||
| MP | - | PDFN5*6 | N | 30 | 20 | 288 | 1.7 | 0.6 | 0.7 | 0.8 | 1.0 | 8334 | 2849 | 648 | 140 |
Filter
| Select | AKS Part Number | Package | Status | Spice model | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @18V(mΩ) |
RDSon_Max @18V(mΩ) |
RDSon_Typ @15V(mΩ) |
RDSon_Max @15V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| TO-247-3L | MP | - | 1700 | 18/22V | 6 | 3.2 | 1000 | 1500 | - | - | 184 | 12 | 3 | 16.5 | ||
| TO-247-4L | MP | - | 1200 | +22/-10 | 80 | 3.2 | 27 | 38 | - | - | 3550 | 130 | 10 | 176 | ||
| TO-263-7L | MP | - | 1700 | +22/-10 | 5.5 | 3.2 | 1000 | 1500 | - | - | 184 | 12 | 3 | 16.5 | ||
| TO-247LP-4L | MP | - | 650 | 10/22V | 50 | 2.8 | 34 | - | 41 | 60 | 2600 | 145 | 5 | 81 | ||
| TO-247-4L | MP | - | 1200 | 10/22V | 29 | 2.6 | 75 | 90 | - | - | 1268 | 48 | 4 | 65 | ||
| TO-247-4L | MP | - | 1200 | 10/22V | 35 | 2.8 | 60 | 78 | - | - | 1447 | 59 | 5 | 78 | ||
| TO-247-4L | MP | - | 1200 | 10/22V | 80 | 3.2 | 27 | 38 | - | - | 3550 | 130 | 10 | 176 | ||
| TO-247LP-4L | MP | - | 1200 | 10/22V | 73.5 | 2.6 | 26 | 35 | - | - | 3340 | 125 | 10 | 168 | ||
| TO-247-4L | MP | - | 1200 | 10/22V | 73.5 | 2.6 | 26 | 35 | - | - | 3340 | 125 | 10 | 168 | ||
| TO-247LP-4L | MP | - | 1200 | 10/22V | 110 | 2.6 | 16 | 22 | - | - | 5800 | 213 | 16 | 279 | ||
| TO-247-4L | MP | - | 1200 | 10/22V | 110 | 2.6 | 16 | 22 | - | - | 5800 | 213 | 16 | 279 | ||
| TO-247LP-46 | MP | - | 1200 | -10/22V | 62 | - | 35 | 45 | 40 | 50 | 2600 | 90 | 6.5 | 113 | ||
| TO-247-3L | MP | - | 1200 | -6 | 35 | 3.2 | 80 | 95 | - | - | 1295 | 65 | 8 | 68.6 | ||
| TO-247-4L | MP | - | 1200 | -6 | 35 | 3.2 | 80 | 90 | - | - | 1295 | 65 | 8 | 68.6 | ||
| TO-247-4L | MP | - | 1200 | -6 | 62 | 2.7 | 35 | 45 | 40 | 50 | 2600 | 90 | 6.5 | 113 |
| Select | AKS Part Number | Status | Spice model | Package | VRRM(V) | IF(A) | VF_Typ(V) | Qc_Typ(nC) |
| MP | - | TO-220-2L | 650 | 6 | 1.35 | 18 | ||
| MP | - | TO-252-2L | 650 | 6 | 1.35 | 18 | ||
| MP | - | PDFN5*6 | 650 | 6 | 1.35 | 18 | ||
| MP | - | TO-220-2L | 650 | 8 | 1.38 | 26 | ||
| MP | - | TO-220-2L | 650 | 10 | 1.38 | 31 | ||
| MP | - | TO-220-2L | 650 | 20 | 1.38 | 65 | ||
| MP | - | TO-247-2L | 1200 | 20 | 1.4 | 110 |
