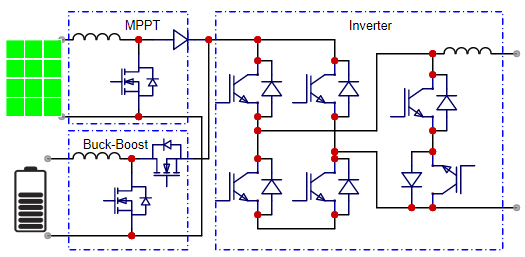

The power range of home ESS is usually between 3kW and 15kW. We provide MOSFET and IGBT solutions with high voltage resistance, high reliability, and low conduction voltage drop.
Solutions
Our Products
| Select | AKS Part Number | Status | Spice model | Package | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| MP | - | TO-220 | 600 | 20 | 50 | 3.8 | 45 | 58 | 2890 | 63 | 15 | 95 | ||
| MP | - | TO-247 | 600 | 30 | 50 | 3.8 | 45 | 58 | 2890 | 63 | 15 | 95 | ||
| MP | - | TO-220 | 600 | 30 | 52 | 4.0 | 38 | 45 | 3580 | 78 | 21 | 117 | ||
| MP | - | TO-247 | 600 | 30 | 63 | 4.0 | 33 | 38 | 3975 | 90 | 33 | 136 | ||
| MP | - | TO-220F | 600 | 30 | 11 | 4.0 | 140 | 180 | 1287 | 26 | 3 | 32 | ||
| MP | - | TOLL | 600 | 30 | 52 | 4.0 | 38 | 45 | 3580 | 78 | 21 | 117 | ||
| MP | - | TO-247-3L | 600 | 30 | 80 | 3.5 | 25 | 30 | 7699 | 3091 | 2.1 | 200.8 | ||
| MP | - | TO-247 | 600 | 30 | 130 | 4.3 | 15.5 | 22 | 11165 | 173 | 20 | 278 | ||
| MP | - | TO-247 | 600 | 30 | 100 | 4.3 | 18.5 | 22.1 | 9820 | 160 | 7 | 245 | ||
| MP | - | TO-247 | 600 | 30 | 35 | 4.0 | 56 | 68 | 3240 | 60 | 3.5 | 83 | ||
| MP | - | TOLL | 600 | 30 | 63 | 4.0 | 32 | 35.5 | 3975 | 90 | 33 | 136 |
Filter
| Select | AKS Part Number | Status | Package | Spice model | Type | VCES/VRRM(V) | ICE/IF(A) | VCEsat_Typ(V) | Vth_Typ(V) | VF_Typ(V) |
| MP | TO-247-2L | - | FRD | 1200 | 75 | - | - | 2 | ||
| MP | TO-247-3L | - | IGBT+FRD | 1200 | 40 | 1.9 | 5.8 | 1.9 | ||
| MP | TO-247Plus-3L | - | IGBT+FRD | 1200 | 75 | 1.9 | 5.8 | 1.8 | ||
| MP | TO-247Plus-3L | - | IGBT+FRD | 1200 | 100 | 1.7 | 5.8 | 2.1 | ||
| MP | TO-247-2L | - | FRD | 1200 | 100 | - | - | 2.05 | ||
| MP | TO-247Plus-3L | - | IGBT+FRD | 1200 | 140 | 1.7 | 5.5 | 2.1 | ||
| MP | TO-247PLUS-4L | - | IGBT+FRD | 1200 | 140 | 1.7 | 5.5 | 2.1 |
| Select | AKS Part Number | Package | Status | Spice model | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @18V(mΩ) |
RDSon_Max @18V(mΩ) |
RDSon_Typ @15V(mΩ) |
RDSon_Max @15V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| TO-247-3L | MP | - | 1700 | 18/22V | 6 | 3.2 | 1000 | 1500 | - | - | 184 | 12 | 3 | 16.5 | ||
| TO-263-7L | MP | - | 1700 | +22/-10 | 5.5 | 3.2 | 1000 | 1500 | - | - | 184 | 12 | 3 | 16.5 | ||
| TO-247LP-4L | MP | - | 650 | 10/22V | 50 | 2.8 | 34 | - | 41 | 60 | 2600 | 145 | 5 | 81 | ||
| TO-247-4L | MP | - | 1200 | 10/22V | 29 | 2.6 | 75 | 90 | - | - | 1268 | 48 | 4 | 65 | ||
| TO-247-4L | MP | - | 1200 | 10/22V | 35 | 2.8 | 60 | 78 | - | - | 1447 | 59 | 5 | 78 | ||
| TO-247-3L | MP | - | 1200 | -6 | 35 | 3.2 | 80 | 95 | - | - | 1295 | 65 | 8 | 68.6 | ||
| TO-247-4L | MP | - | 1200 | -6 | 35 | 3.2 | 80 | 90 | - | - | 1295 | 65 | 8 | 68.6 | ||
| TO-247-4L | MP | - | 1200 | -6 | 59 | 3.2 | 40 | 54 | - | - | 2360 | 108 | 13 | 128 | ||
| TO-247-4L | MP | - | 1200 | -6 | 59 | 3.2 | 42 | 54 | - | - | 2360 | 108 | 13 | 128 |
| Select | AKS Part Number | Status | Spice model | Package | VRRM(V) | IF(A) | VF_Typ(V) | Qc_Typ(nC) |
| MP | - | TO-220-2L | 650 | 8 | 1.38 | 26 | ||
| MP | - | TO-220-2L | 650 | 10 | 1.38 | 31 | ||
| MP | - | TO-220-2L | 650 | 20 | 1.38 | 65 | ||
| MP | - | TO-247-2L | 1200 | 20 | 1.4 | 110 |
