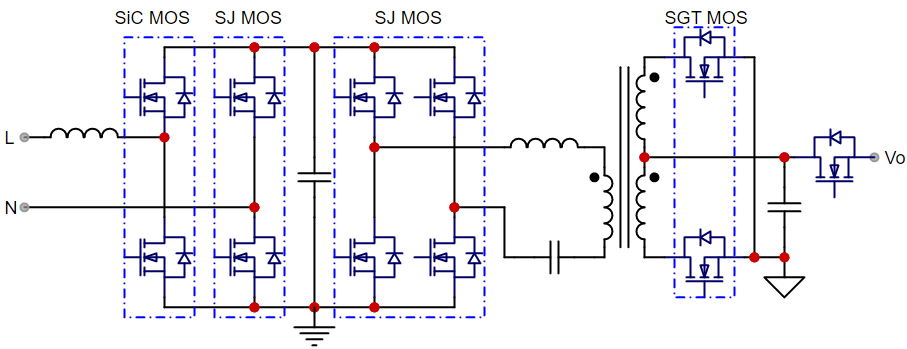

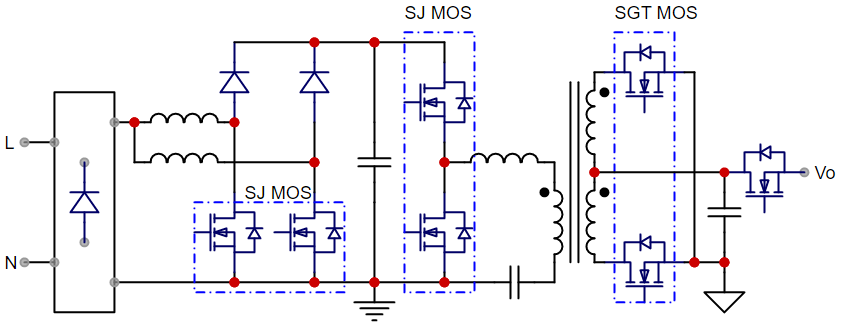

The power system of the base station must have high energy efficiency, high density, and high reliability to provide the required high-level power performance. The SGT MOS and SJ MOS series products we provide have been optimized through processes and technologies, resulting in lower conduction voltage drop and switching loss, as well as stronger reliability.
Solutions
Our Products
| Select | AKS Part Number | Status | Spice model | Package | Cfg. | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
RDSon_Typ @4.5V(mΩ) |
RDSon_Max @4.5V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| MP | - | PDFN5*6 | N | 40 | 20 | 176 | 1.5 | 1.1 | 1.3 | 1.6 | 2 | 3900 | 1460 | 32.9 | 63.1 |
Filter
| Select | AKS Part Number | Status | Spice model | Package | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| NEW | - | TO-247 | 600 | 30 | 80 | 4.0 | 26 | 29 | 4510 | 115 | 30 | 134 | ||
| NEW | - | TOLL | 600 | 30 | 50 | 3.8 | 45 | 58 | 2890 | 63 | 15 | 95 | ||
| MP | - | TO-220 | 650 | 30 | 20 | 3.3 | 146 | 190 | 1670 | 83.1 | 0.8 | 44 | ||
| MP | - | TO-220 | 600 | 20 | 50 | 3.8 | 45 | 58 | 2890 | 63 | 15 | 95 | ||
| MP | - | TO-247 | 600 | 30 | 50 | 3.8 | 45 | 58 | 2890 | 63 | 15 | 95 | ||
| NEW | - | TO-247 | 600 | 30 | 52 | 4.0 | 38 | 45 | 3580 | 78 | 21 | 117 | ||
| MP | - | TO-220 | 600 | 30 | 52 | 4.0 | 38 | 45 | 3580 | 78 | 21 | 117 | ||
| MP | - | TO-247 | 600 | 30 | 63 | 4.0 | 33 | 38 | 3975 | 90 | 33 | 136 | ||
| MP | - | TO-220F | 600 | 30 | 11 | 4.0 | 140 | 180 | 1287 | 26 | 3 | 32 | ||
| NEW | - | TO-220 | 600 | 30 | 63 | 4.0 | 33 | 38 | 3975 | 90 | 93 | 136 | ||
| MP | - | TOLL | 600 | 30 | 52 | 4.0 | 38 | 45 | 3580 | 78 | 21 | 117 | ||
| MP | - | TO-247-3L | 600 | 30 | 80 | 3.5 | 25 | 30 | 7699 | 3091 | 2.1 | 200.8 | ||
| MP | - | TO-263 | 650 | 30 | 20 | 3.3 | 140 | 190 | 1670 | 83.1 | 0.8 | 44 | ||
| MP | - | TO-220F | 650 | 30 | 20 | 3.3 | 140 | 190 | 1670 | 83.1 | 0.8 | 44 | ||
| MP | - | TO-220NF | 650 | 30 | 20 | 3.3 | 140 | 190 | 1670 | 83.1 | 0.8 | 44 | ||
| MP | - | TO-247-3L | 650 | 30 | 62 | 4.0 | 34 | 41 | 6715 | 245 | 1.64 | 172 | ||
| MP | - | TO-247 | 650 | 30 | 35 | 4.0 | 84 | 95 | 3375 | 76 | 8 | 90 | ||
| MP | - | TO-220F | 650 | 30 | 20 | 3.8 | 136 | 190 | 1695 | 74 | 2 | 46 | ||
| MP | - | PDFN8×8 | 650 | 30 | 30 | 3.3 | 140 | 190 | 1670 | 83.1 | 0.8 | 44 | ||
| MP | - | TO-252 | 650 | 30 | 2 | 3.7 | 1800 | 2200 | 159 | 22 | 2.5 | 8.1 | ||
| MP | - | TO-247 | 600 | 30 | 130 | 4.3 | 15.5 | 22 | 11165 | 173 | 20 | 278 | ||
| MP | - | TO-247-3L | 650 | 30 | 65 | 4.0 | 29 | 37 | 7185 | 103 | 16 | 160 | ||
| MP | - | TO-247 | 600 | 30 | 100 | 4.3 | 18.5 | 22.1 | 9820 | 160 | 7 | 245 | ||
| MP | - | TO-247 | 600 | 30 | 35 | 4.0 | 56 | 68 | 3240 | 60 | 3.5 | 83 | ||
| MP | - | TOLL | 600 | 30 | 63 | 4.0 | 32 | 35.5 | 3975 | 90 | 33 | 136 | ||
| MP | - | TO-220 | 650 | 30 | 21 | 3.8 | 144 | 190 | 1695 | 74 | 2 | 46 | ||
| MP | - | TO-220F | 600 | 30 | 11 | 4.0 | 140 | 180 | 1287 | 26 | 3 | 32 |
