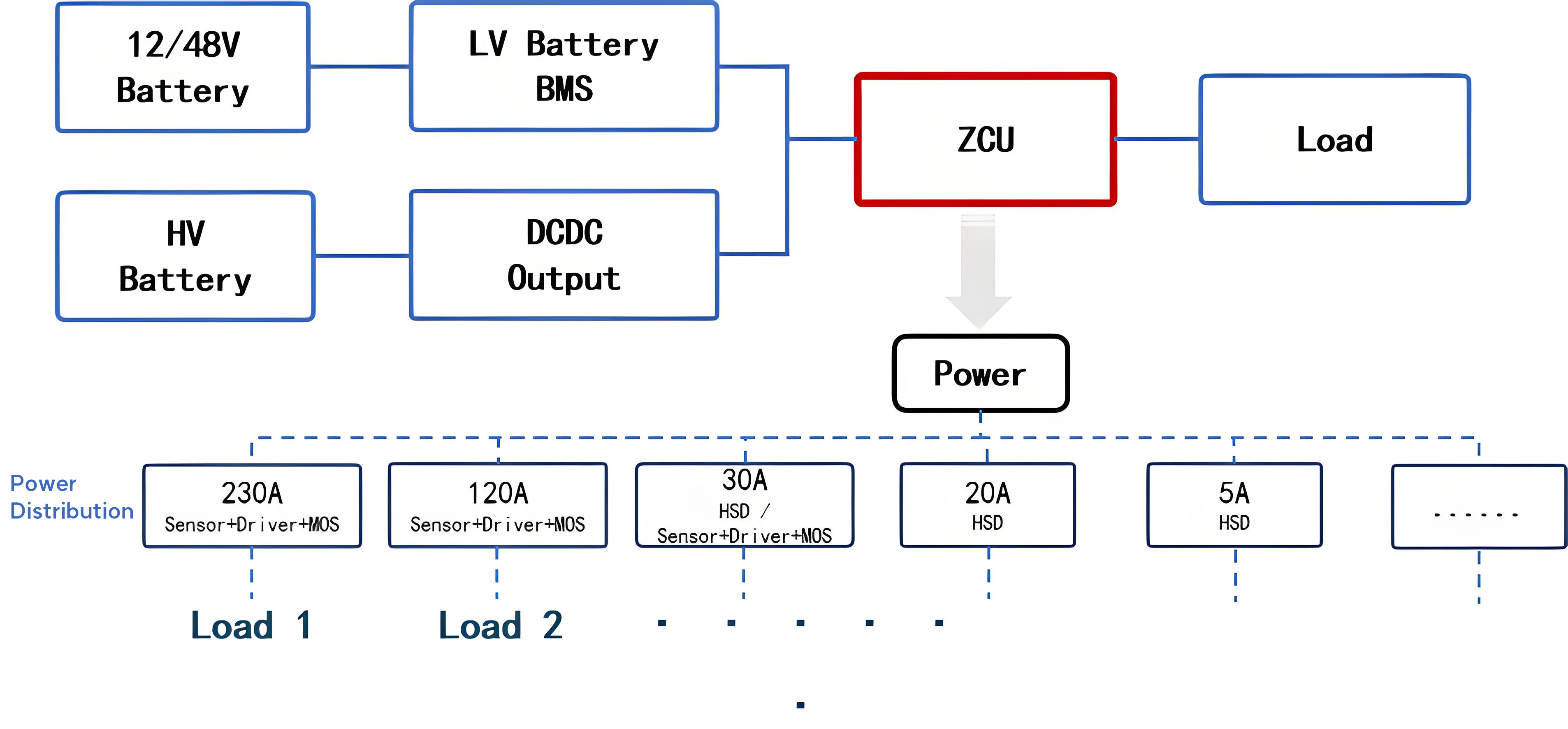

MOSFET plays an important role in intelligent power distribution applications, with higher requirements for miniaturization, low loss, and high consistency compared to conventional applications. Our low-voltage MOSFET can perfectly match this application requirement.

Solutions

Our Products

Select	AKS Part Number	Status	Spice model	Package	Cfg.	VDS(V)	Vgs(V)	ID(A)	Vth_Typ(V)	RDSon_Typ @10V(mΩ)	RDSon_Max @10V(mΩ)	RDSon_Typ @4.5V(mΩ)	RDSon_Max @4.5V(mΩ)	CISS_Typ (pF)	COSS_Typ (pF)	CRSS_Typ (pF)	QG_Typ (nC)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AKG4N010GAM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	250	3.0	0.8	1.05	-	-	5810	1640	15	72
	AKG6N014GAM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	60	20	223	2.9	1.1	1.4	-	-	8880	1970	178	147
	AKG4N058QM-A Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	MP	-	PDFN3.3*3.3	N	40	20	50	3.0	4.8	5.8	-	-	1220	360	12	15
	AKG4N008GAM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	340	2.8	0.6	0.8	-	-	8980	3560	36	110
	AKG4N018GM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	161	2.8	1.55	1.85	-	-	3000	1260	20	38
	AK2G4N010TAM-A Datasheets Marking POD Tape&reel	MP	-	sTOLL	N	40	20	324	3.0	0.88	1.05	-	-	6329	2240	41	81
	AK2G4N016GM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	185	3.0	1.2	1.6	-	-	3955	1485	25	50
	AKG4N025GAM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	130	3.0	2.1	2.5	-	-	3055	862	29	36
	AKG4N035GAM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	90	3.0	2.5	3.5	-	-	1860	560	15	22.5
	AKG4N058GAM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	40	3.0	4.3	5.8	-	-	1220	360	12	15.5
	AKG4N013GAM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	235	3.0	0.9	1.2	-	-	5810	1640	15	72
	AK2G4N017GAM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	168	3.0	1.35	1.7	-	-	3030	1005	20	40
	AK2G4N008GAM-A Datasheets Marking POD Tape&reel	MP	-	PDFN5*6	N	40	20	325	3.0	0.64	0.8	-	-	6218	2330	34	80
	AKG4N009DAM-A AKG4N009DAM-A	MP	-	TO-263-7L	N	40	20	240	3.2	0.6	1	-	-	13080	3370	52	132
	AKG4N025GM-A Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	MP	-	PDFN5*6	N	40	20	130	3.0	2.1	2.5	-	-	3055	862	29	36
	AKG4N008GM-A Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	MP	-	PDFN5*6	N	40	20	340	2.8	0.6	0.8	-	-	8980	3560	36	110
	AKG4N013GM-A Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	MP	-	PDFN5*6	N	40	20	235	3.0	0.9	1.2	-	-	5810	1640	15	72
	AKG4N035GM-A Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	MP	-	PDFN5*6	N	40	20	90	3.0	2.5	3.5	-	-	1860	560	15	22.5
	AKG4A058GM-A Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	MP	-	PDFN5*6	N	40	20	50	3.0	4.8	5.8	-	-	1860	560	15	23
	AKG4N058GM-A Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	MP	-	PDFN5*6	N	40	20	40	3.0	4.8	5.8	-	-	1220	360	12	15.5
	AKG4N010GM-A AKG4N010GM-A	MP	-	PDFN5*6	N	40	20	250	3.0	0.8	1.1	-	-	5810	1640	15	72
	AKG10N012TM-A Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	MP	-	TOLL	N	100	20	300	2.8	0.98	1.25	-	-	20760	4310	117	291
