Application

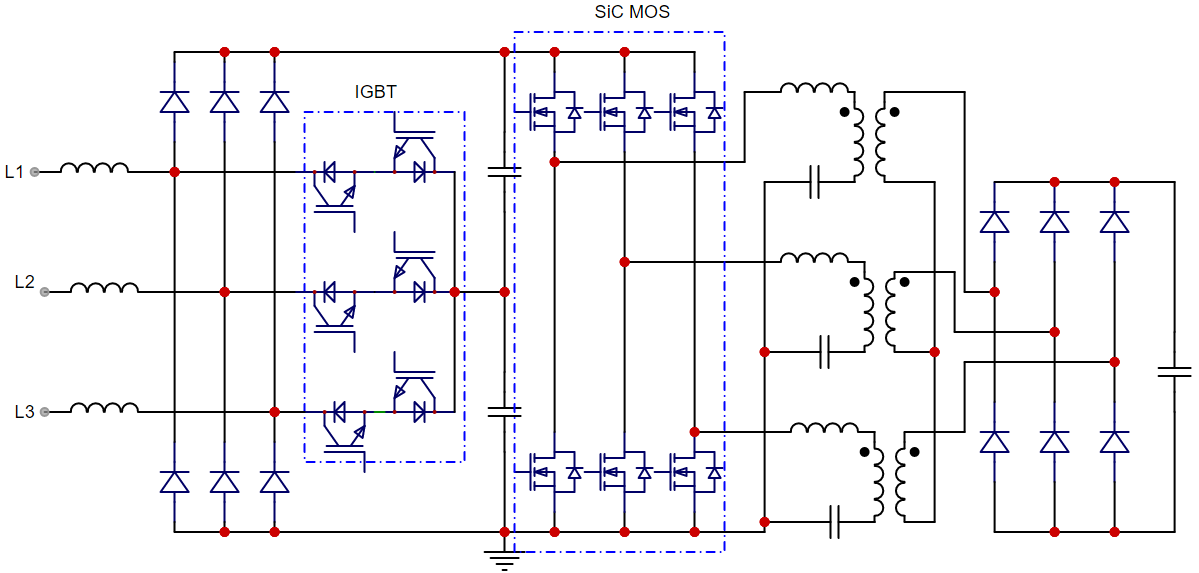

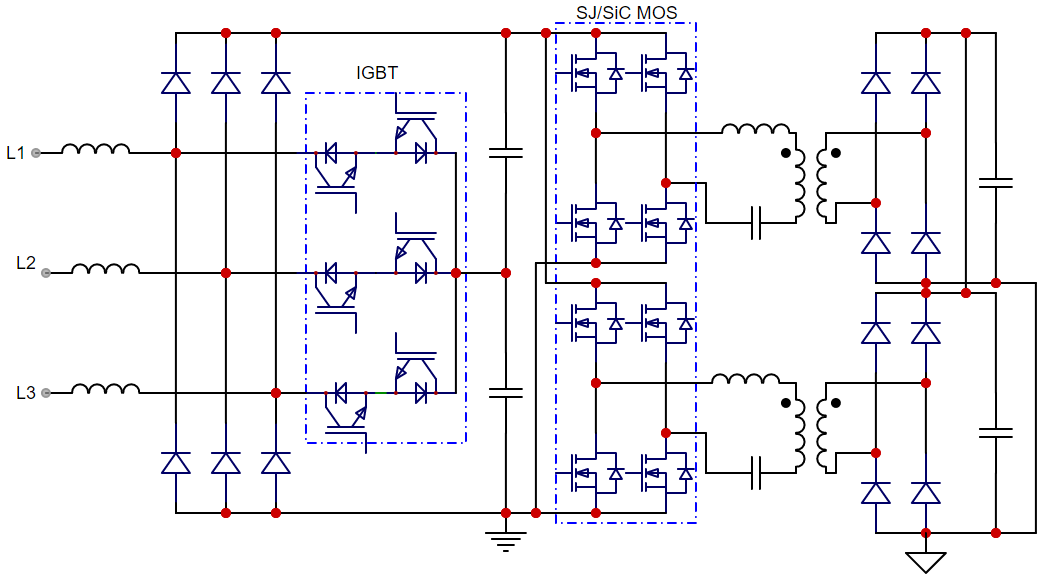

High power DC EV Charger typically output high voltage and high current in high-temperature environments, and require high energy efficiency and performance. We have launched a series of IGBT products with extremely low Vcesat and VF voltage for the front-end PFC circuit to meet the requirements of high-power DC charging modules; We have launched SiC products with extremely low parasitic capacitance to meet the high-efficiency and high-frequency applications of charging modules for the later stage DC-DC part.
Solutions
Our Products
| Select | AKS Part Number | Status | Package | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ@10V(mΩ) | RDSon_Max@10V(mΩ) | CISS_Typ(pF) | COSS_Typ(pF) | CRSS_Typ(pF) | QG_Typ(nC) |
| MP | TO-247 | 600 | 30 | 100 | 4.3 | 18.5 | 22.1 | 9820 | 160 | 7 | 245 |
Filter
| Select | AKS Part Number | Package | Type | VCES/VF(V) | ICE/IF(A) | VCEsat_Typ(V) | Vth_Typ(V) | VF_Typ(V) |
| TO-247-3L | IGBT + FRD | 650 | 75 | 1.6 | 4.0 | 1.45 |
