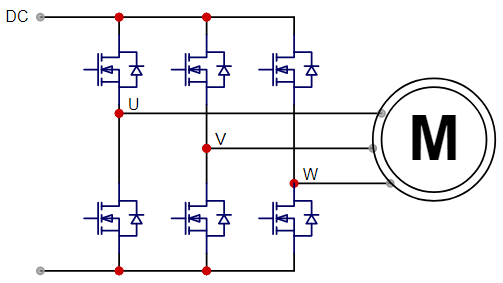

Industrial electric tools are an indispensable part of modern industry, characterized by high efficiency, precision, and reliability, and are widely used in various fields. It is divided into rope and cordless types. We provide different solutions for low voltage BMS, low voltage electric drive, and high voltage electric drive for different power tool solutions.
Solutions
Our Products
| Select | AKS Part Number | Status | Spice model | Package | Cfg. | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
RDSon_Typ @4.5V(mΩ) |
RDSon_Max @4.5V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| MP | - | PDFN5*6 | N | 40 | 20 | 115 | 1.7 | 2 | 2.5 | 3 | 3.8 | 1827 | 623 | 22 | 28.3 | ||
| MP | - | PDFN5*6 | N | 60 | 20 | 100 | 2.0 | 2.3 | 2.8 | 4.1 | 5.5 | 3828 | 773 | 78 | 69.2 | ||
| MP | - | TOLL | N | 40 | 20 | 160 | 3.0 | 1 | 1.2 | - | - | 7020 | 2000 | 10 | 80 | ||
| MP | - | PDFN5*6 | N | 30 | 20 | 125 | 1.7 | 1.9 | 2.2 | 2.8 | 3.5 | 2135 | 790 | 87 | 38 | ||
| MP | - | PDFN5*6 | N | 30 | 20 | 165 | 1.8 | 1.3 | 1.5 | 2.2 | 2.8 | 2655 | 1205 | 60 | 40 | ||
| MP | - | PDFN5*6 | N | 40 | 20 | 183 | 1.7 | 1.1 | 1.3 | 1.6 | 2 | 55 | 1300 | 55 | 60 | ||
| MP | - | PDFN5*6 | N | 40 | 20 | 214 | 1.6 | 1.3 | 1.6 | 2 | 2.5 | 2955 | 1100 | 28 | 46 |
