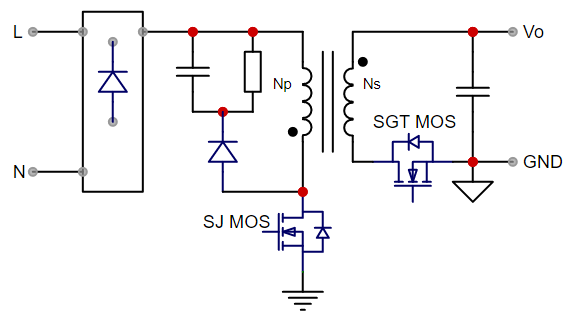

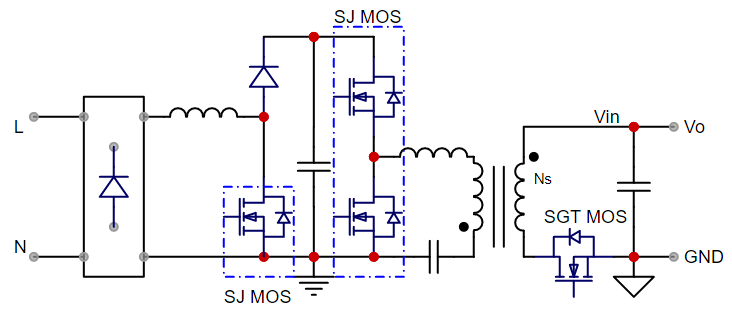

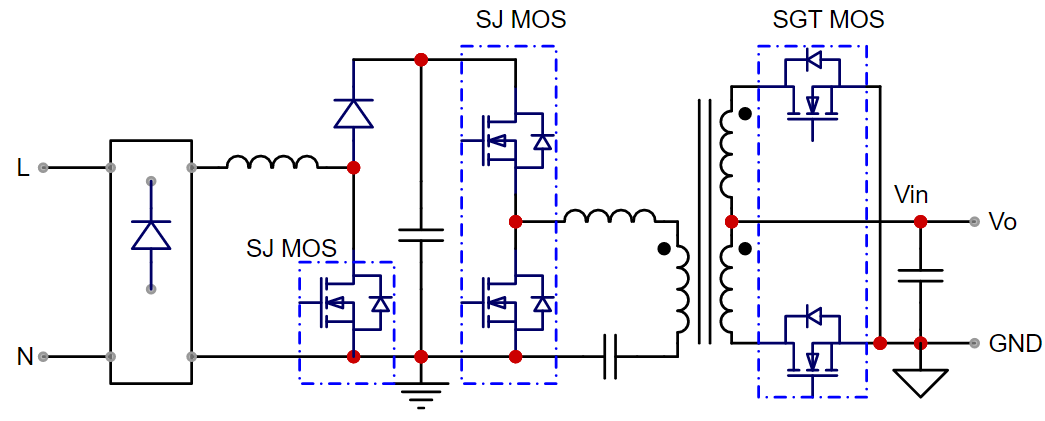

Our SJ MOS and SGT MOS series, launched for consumer electronics products, are based on leading process technology platforms that balance switch losses and conduction losses, providing strong competitiveness for efficient, compact, and cost-effective consumer electronics products.
Solutions
Our Products
| Select | AKS Part Number | Status | Spice model | Package | Cfg. | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
RDSon_Typ @4.5V(mΩ) |
RDSon_Max @4.5V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| MP | - | PDFN5*6 | N | 60 | 20 | 100 | 2.0 | 2.3 | 3.5 | 4.1 | 5.5 | 3828 | 773 | 78 | 69.2 |
Filter
| Select | AKS Part Number | Status | Spice model | Package | Cfg. | ESD | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
RDSon_Typ @4.5V(mΩ) |
RDSon_Max @4.5V(mΩ) |
RDSon_Typ @2.5V(mΩ) |
RDSon_Max @2.5V(mΩ) |
| MP | - | PDFN3.3*3.3 | N | N | 30 | ±20 | 36 | 1.5 | 3.5 | 6.3 | 5.9 | 10 | - | - |
| Select | AKS Part Number | Status | Spice model | Package | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| MP | - | TO-220F | 650 | ±30 | 11 | 3.5 | 300 | 360 | 841 | 45.1 | 2.8 | 23.3 | ||
| MP | - | TO-220 | 650 | 30 | 15 | 3.6 | 260 | 290 | 647 | 20 | 7 | 22 | ||
| MP | - | TO-220F | 650 | 30 | 15 | 3.6 | 260 | 290 | 647 | 20 | 7 | 22 | ||
| MP | - | TO-252 | 650 | 30 | 12.5 | 3.4 | 302 | 360 | 530 | 15 | 5.5 | 20 | ||
| MP | - | TO-220F | 650 | 30 | 12.5 | 3.4 | 302 | 360 | 530 | 15 | 5.5 | 20 | ||
| NEW | - | TO-220F | 650 | 30 | 8 | 3.5 | 510 | 600 | 338 | 13 | 5.5 | 14 | ||
| NEW | - | TO-252 | 650 | 30 | 8 | 3.5 | 510 | 600 | 338 | 13 | 5.5 | 14 | ||
| MP | - | TO-252 | 650 | 30 | 3 | 3.5 | 1250 | 1400 | 225 | 44.5 | 0.5 | 7.7 | ||
| MP | - | TO-252 | 650 | 30 | 4 | 3.5 | 1000 | 1200 | 265 | 30.4 | 0.5 | 12.2 | ||
| MP | - | TO-252 | 650 | 30 | 8 | 3.5 | 505 | 600 | 515 | 43.8 | 0.7 | 15 | ||
| MP | - | TO-220F | 650 | 30 | 8 | 3.5 | 505 | 600 | 515 | 43.8 | 0.7 | 15 | ||
| MP | - | TO-220 | 650 | 30 | 11 | 3.5 | 280 | 360 | 841 | 45.1 | 2.8 | 23.3 | ||
| MP | - | TO-220NF | 650 | 30 | 11 | 3.5 | 280 | 360 | 841 | 45.1 | 2.8 | 23.3 | ||
| MP | - | PDFN8×8 | 650 | 30 | 11 | 3.5 | 280 | 360 | 841 | 45.1 | 2.8 | 23.3 | ||
| MP | - | TO-252 | 700 | 30 | 8 | 3.5 | 540 | 600 | 515 | 43.8 | 0.7 | 15 | ||
| MP | - | TO-247-3L | 650 | 30 | 50 | 3.5 | 48 | 59 | 5270 | 122 | 8 | 133 | ||
| MP | - | TO-252 | 650 | 30 | 11 | 3.5 | 310 | 360 | 600 | 20 | 5.8 | 22 | ||
| MP | - | TO-247 | 650 | 30 | 62 | 3.8 | 34 | 41 | 6715 | 245 | 1.64 | 172 |
