Application

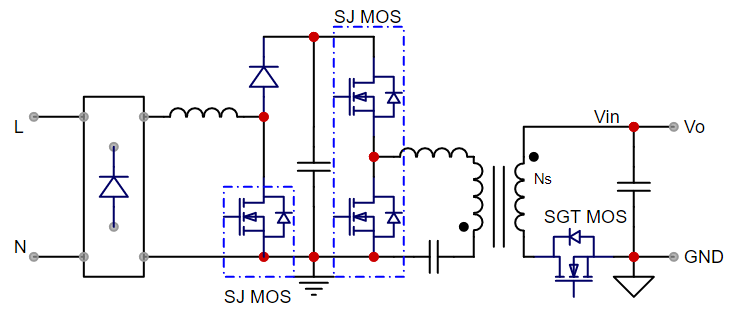

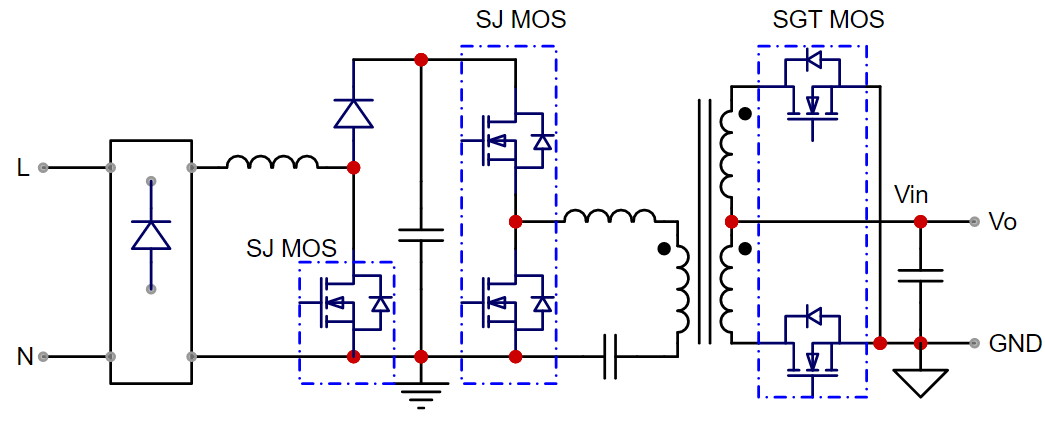

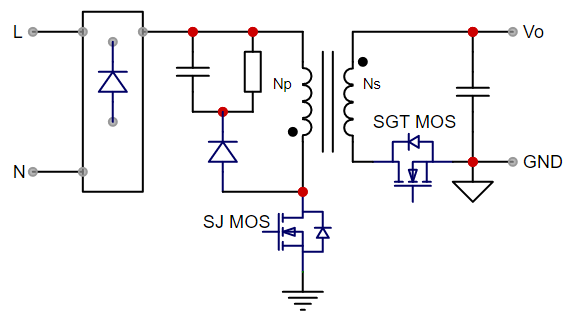

Our SJ MOS and SGT MOS series for lighting products are based on leading process technology platforms, balancing switch losses and conduction losses.
Solutions
Our Products
| Select | AKS Part Number | Status | Package | Cfg. | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ@10V(mΩ) | RDSon_Max@10V(mΩ) | RDSon_Typ@4.5V(mΩ) | RDSon_Max@4.5V(mΩ) | CISS_Typ(pF) | COSS_Typ(pF) | CRSS_Typ(pF) | QG_Typ(nC) |
| MP | PDFN5*6 | N | 60 | 20 | 100 | 2.0 | 2.3 | 3.5 | 4.1 | 5.5 | 3828 | 773 | 78 | 69.2 | ||
| MP | SOP-8 | N | 100 | 20 | 11 | 1.9 | 6.5 | 9.6 | 8.9 | 13.0 | 2550 | 740 | 34 | 42.2 | ||
| MP | PDFN5×6-8L | N | 100 | 20 | 85 | 1.9 | 3.8 | 4.6 | 5.2 | 6.4 | 4590 | 1060 | 38.4 | 79 | ||
| MP | PDFN5×6-8L | N | 100 | 20 | 104 | 2.0 | 3.1 | 3.8 | 4.2 | 4.9 | 5980 | 1270 | 31.5 | 100 | ||
| MP | PDFN3.3*3.3 | N | 40 | 20 | 55 | 1.9 | 4.5 | 5.0 | 6.4 | 7.6 | 1314 | 433 | 30 | 19 | ||
| MP | PDFN5*6 | N | 60 | 20 | 80 | 2.0 | 3.0 | 4.5 | 4.0 | 6.0 | 3720 | 875 | 65 | 67 | ||
| MP | PDFN5*6 | N | 150 | 20 | 65 | 3.0 | 8.0 | 9.9 | 0.0 | 0.0 | 3690 | 320 | 15 | 51 | ||
| MP | PDFN5*6 | 60 | 20 | 53 | 1.9 | 7.4 | 9.2 | 11.3 | 14.0 | 1110 | 295 | 28 | 22 | |||
| MP | PDFN5*6 | N | 150 | 20 | 104 | 3.8 | 5.5 | 7.2 | 0.0 | 0.0 | 3260 | 1010 | 22 | 41 |
Filter
| Select | AKS Part Number | Status | Package | Cfg. | ESD | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ@10V(mΩ) | RDSon_Max@10V(mΩ) | RDSon_Typ@4.5V(mΩ) | RDSon_Max@4.5V(mΩ) | RDSon_Typ@2.5V(mΩ) | RDSon_Max@2.5V(mΩ) |
| MP | PDFN3.3*3.3 | N | N | 30 | 20 | 22 | 1.5 | 9.3 | 12.0 | 14.5 | 18.5 | / | / |
| Select | AKS Part Number | Status | Package | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ@10V(mΩ) | RDSon_Max@10V(mΩ) | CISS_Typ(pF) | COSS_Typ(pF) | CRSS_Typ(pF) | QG_Typ(nC) |
| MP | TO-252 | 700 | 30 | 8 | 3.5 | 540.0 | 600.0 | 515 | 43.8 | 0.7 | 15 | ||
| MP | TO-252 | 650 | 30 | 11 | 3.5 | 310.0 | 360.0 | 600 | 20 | 5.8 | 22 | ||
| MP | TO-220F | 600 | 30 | 11 | 4.0 | 140.0 | 180.0 | 1287 | 26 | 3 | 32 |
