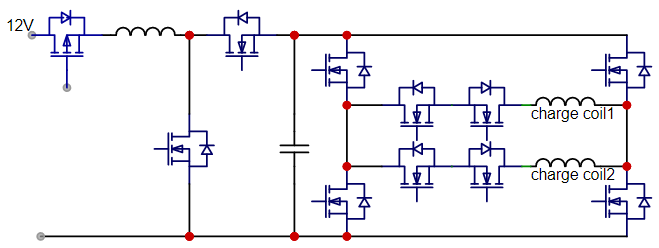

We provide a series of SGT MOS, which have excellent dynamic performance and achieve better EMI passability.
Solutions
Our Products
| Select | AKS Part Number | Status | Spice model | Package | Cfg. | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ @10V(mΩ) |
RDSon_Max @10V(mΩ) |
RDSon_Typ @4.5V(mΩ) |
RDSon_Max @4.5V(mΩ) |
CISS_Typ (pF) |
COSS_Typ (pF) |
CRSS_Typ (pF) |
QG_Typ (nC) |
| MP | - | PDFN5*6 | N | 30 | 20 | 430 | 1.6 | 0.4 | 0.5 | 0.6 | 0.8 | 13210 | 4055 | 950 | 240 | ||
| MP | - | PDFN5*6 | N | 30 | 20 | 165 | 1.7 | 1.3 | 1.5 | 2.2 | 2.8 | 2874 | 1151 | 76 | 46.5 | ||
| MP | - | PDFN5*6 | N | 30 | 20 | 200 | 1.7 | 0.9 | 1.1 | 1.5 | 1.8 | 3700 | 1500 | 90 | 60.4 | ||
| MP | - | PDFN5*6 | N | 60 | 20 | 100 | 2.0 | 2.3 | 3.5 | 4.1 | 5.5 | 3828 | 773 | 78 | 69.2 | ||
| MP | - | PDFN5*6-8L | N | 100 | 20 | 85 | 1.9 | 3.8 | 4.6 | 5.2 | 6.4 | 4590 | 1060 | 38.4 | 79 | ||
| MP | - | TO-263 | N | 100 | 20 | 120 | 3.0 | 3.7 | 4.2 | - | - | 6070 | 1320 | 65 | 88 | ||
| MP | - | TO-220 | N | 100 | 20 | 175 | 3.3 | 3.6 | 4.2 | - | - | 5509 | 651 | 31 | 80.8 | ||
| MP | - | TO-263 | N | 100 | 20 | 175 | 3.3 | 3.6 | 4.2 | - | - | 5509 | 651 | 31 | 80.8 | ||
| MP | - | PDFN5*6 | N | 100 | 20 | 104 | 2.0 | 3.1 | 3.8 | 4.2 | 4.9 | 5980 | 1270 | 31.5 | 100 | ||
| MP | - | PDFN5*6 | N | 40 | 20 | 76 | 1.9 | 4.5 | 5.3 | 6.4 | 7.6 | 1314 | 433 | 30 | 19 | ||
| MP | - | PDFN5*6 | N | 60 | 20 | 80 | 2.0 | 3 | 4.5 | 4 | 6 | 3720 | 875 | 65 | 67 | ||
| MP | - | PDFN5*6 | N | 60 | 20 | 100 | 2.0 | 2.3 | 2.8 | 4.1 | 5.5 | 3828 | 773 | 78 | 69.2 | ||
| MP | - | TO-252 | N | 60 | 20 | 27 | 1.7 | 18.5 | 22 | 25.6 | 35 | 560 | 188 | 28.6 | 6.99 | ||
| MP | - | PDFN5*6 | N | 100 | ±20 | 55 | 2.0 | 8 | 10 | 10.5 | 13.5 | 2198 | 508 | 23 | 35 | ||
| MP | - | PDFN3.3*3.3 | N | 30 | 20 | 150 | 1.8 | 1.3 | 1.5 | 2.2 | 2.8 | 2655 | 1205 | 60 | 39 |
