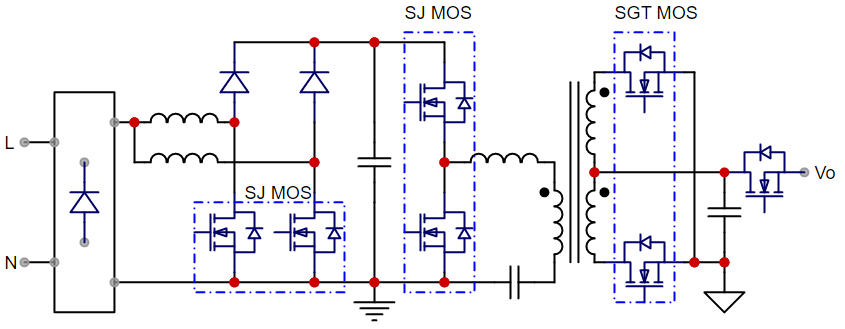

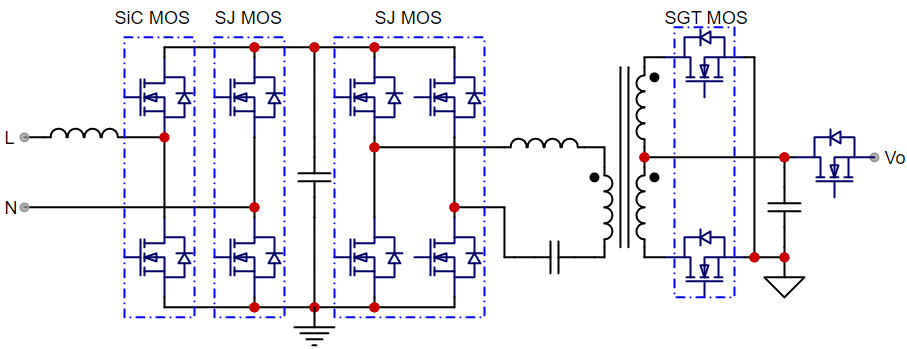

With the continuous improvement of server performance and the increase of power consumption, it is required that the power supply can provide higher power in a smaller volume. By adopting third-generation semiconductor SiC and optimizing circuit design, the power density of the power supply is continuously improved to make the space utilization of the server more efficient. Our improved SiC MOS, SJ MOS, SGT MOS, and extremely low on resistance can perfectly match a range of requirements.
Solutions
Our Products
| Select | AKS Part Number | Status | Package | VDS(V) | Vgs(V) | ID(A) | Vth_Typ(V) | RDSon_Typ@10V(mΩ) | RDSon_Max@10V(mΩ) | CISS_Typ(pF) | COSS_Typ(pF) | CRSS_Typ(pF) | QG_Typ(nC) |
| MP | TO-247-3L | 650 | 30 | 50 | 3.5 | 48.0 | 59.0 | 5270 | 122 | 8 | 133 | ||
| MP | TO-247-3L | 650 | 30 | 65 | 4.0 | 29.0 | 37.0 | 7185 | 103 | 16 | 160 | ||
| MP | TO-247 | 600 | 30 | 100 | 4.3 | 18.5 | 22.1 | 9820 | 160 | 7 | 245 | ||
| MP | TO-247 | 600 | 30 | 35 | 4.0 | 56 | 68 | 3240 | 60 | 3.5 | 83 | ||
| MP | TOLL | 600 | 30 | 63 | 4.0 | 32.0 | 35.5 | 3975 | 90 | 33 | 136 |
