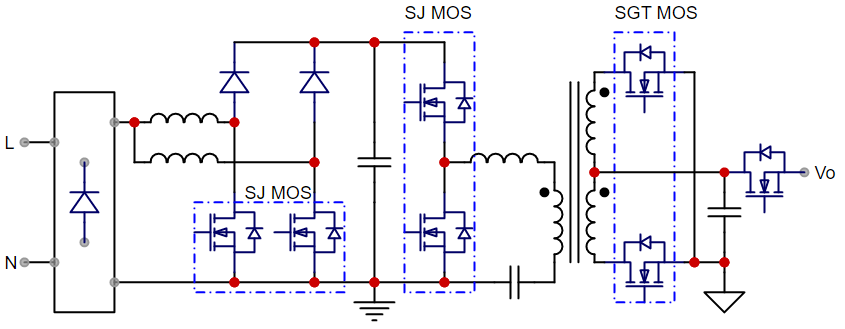

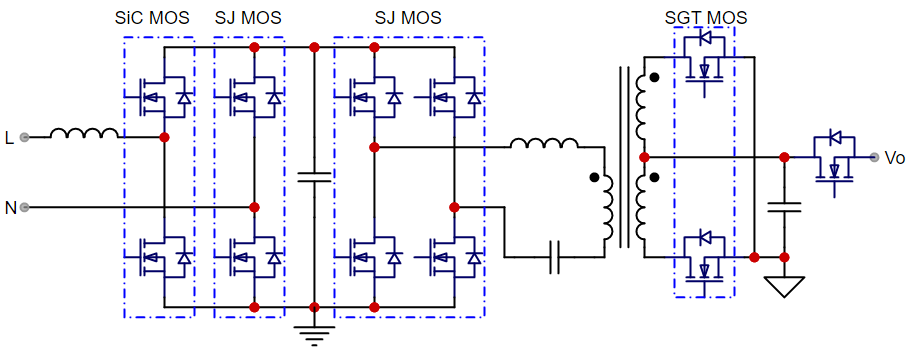

With the continuous improvement of server performance and the increase of power consumption, it is required that the power supply can provide higher power in a smaller volume. By adopting third-generation semiconductor SiC and optimizing circuit design, the power density of the power supply is continuously improved to make the space utilization of the server more efficient. Our improved SiC MOS, SJ MOS, SGT MOS, and extremely low on resistance can perfectly match a range of requirements.

Solutions

Our Products

Select	AKS Part Number	Status	Package	Spice model	Type	VCES/VRRM(V)	ICE/IF(A)	VCEsat_Typ(V)	Vth_Typ(V)	VF_Typ(V)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AKDK2N075WBF Datasheets Marking POD Tape&reel	MP	TO-247-2L	-	FRD	1200	75	-	-	2
	AKDK2N100WBF AKDK2N100WBF	MP	TO-247-2L	-	FRD	1200	100	-	-	2.05

Select	AKS Part Number	Package	Status	Spice model	VDS(V)	Vgs(V)	ID(A)	Vth_Typ(V)	RDSon_Typ @18V(mΩ)	RDSon_Max @18V(mΩ)	RDSon_Typ @15V(mΩ)	RDSon_Max @15V(mΩ)	CISS_Typ (pF)	COSS_Typ (pF)	CRSS_Typ (pF)	QG_Typ (nC)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AKCK7M1K0WMH Datasheets Marking POD Tape&reel	TO-247-3L	MP	-	1700	18/22V	6	3.2	1000	1500	-	-	184	12	3	16.5
	AKCK7M1K0DBMH Datasheets Marking POD Tape&reel	TO-263-7L	MP	-	1700	+22/-10	5.5	3.2	1000	1500	-	-	184	12	3	16.5
	AKC65M045WDM Datasheets Marking POD Tape&reel	TO-247LP-4L	MP	-	650	10/22V	50	2.8	34	-	41	60	2600	145	5	81

Select	AKS Part Number	Status	Spice model	Package	VRRM(V)	IF(A)	VF_Typ(V)	Qc_Typ(nC)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AKC650D006PA	MP	-	TO-220-2L	650	6	1.35	18
	AKC65D006KHH	MP	-	TO-252-2L	650	6	1.35	18
	AKC65D006GHH	MP	-	PDFN5*6	650	6	1.35	18
	AKC65D008PAHH	MP	-	TO-220-2L	650	8	1.38	26
	AKC65D010PAHH	MP	-	TO-220-2L	650	10	1.38	31
	AKC65D020PAHH	MP	-	TO-220-2L	650	20	1.38	65
	AKCK2D020WBHH	MP	-	TO-247-2L	1200	20	1.4	110

Together for an Intelligent and Sustainable Future

沪ICP备 2020036924号-1 沪公网安备31011502402881号
 Privacy Policy

Products: Silicon Power Devices; SiC Power Devices; MEMS Sensors; Signal Chain Chips

Applications: Automotive; Renewable Energy; Communication; High Performance Computing; Industry; Intelligent Life

Quality Management: Quality Policy; Quality System; TQM

About Us: Corporate Profile; Corporate Culture; ESG; Promotional Film

Contact Us: Contact Us; Marketing; Feedback

Select	AKS Part Number	Status	Spice model	Package	VDS(V)	Vgs(V)	ID(A)	Vth_Typ(V)	RDSon_Typ @10V(mΩ)	RDSon_Max @10V(mΩ)	CISS_Typ (pF)	COSS_Typ (pF)	CRSS_Typ (pF)	QG_Typ (nC)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AK3S65N990WMF Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	NEW	-	TO-247	650	±30	30	4.0	85	99	1485	43	43	48
	AK3S60N290WMF Datasheets Marking POD Tape&reel	NEW	-	TO-247	600	30	80	4.0	26	29	4510	115	30	134
	AK3S60N580TMF Datasheets Marking POD Tape&reel	NEW	-	TOLL	600	30	50	3.8	45	58	2890	63	15	95
	AKS65N1K9PM Datasheets Marking POD 1 POD 2 Tape&reel	MP	-	TO-220	650	30	20	3.3	146	190	1670	83.1	0.8	44
	AK3S60N580PMF Datasheets Marking POD Tape&reel	MP	-	TO-220	600	20	50	3.8	45	58	2890	63	15	95
	AK3S60N580WMF Datasheets Marking POD Tape&reel	MP	-	TO-247	600	30	50	3.8	45	58	2890	63	15	95
	AK3S60N450WMF Datasheets Marking POD Tape&reel	NEW	-	TO-247	600	30	52	4.0	38	45	3580	78	21	117
	AK3S60N450PMF Datasheets Marking POD Tape&reel	MP	-	TO-220	600	30	52	4.0	38	45	3580	78	21	117
	AK3S60N380WMF Datasheets Marking POD Tape&reel	MP	-	TO-247	600	30	63	4.0	33	38	3975	90	33	136
	AK3S60N1K8FMF Datasheets Marking POD Tape&reel	MP	-	TO-220F	600	30	11	4.0	140	180	1287	26	3	32
	AK3S60N380PMF Datasheets Marking POD Tape&reel	NEW	-	TO-220	600	30	63	4.0	33	38	3975	90	93	136
	AK3S60N450TMF Datasheets Marking POD Tape&reel	MP	-	TOLL	600	30	52	4.0	38	45	3580	78	21	117
	AKS60N300WMF AKS60N300WMF	MP	-	TO-247-3L	600	30	80	3.5	25	30	7699	3091	2.1	200.8
	AKS65N1K9DM	MP	-	TO-263	650	30	20	3.3	140	190	1670	83.1	0.8	44
	AKS65N1K9FM	MP	-	TO-220F	650	30	20	3.3	140	190	1670	83.1	0.8	44
	AKS65N1K9FAM	MP	-	TO-220NF	650	30	20	3.3	140	190	1670	83.1	0.8	44
	AKS65N410WMF	MP	-	TO-247-3L	650	30	62	4.0	34	41	6715	245	1.64	172
	AKS65N950WMF AKS65N950WMF	MP	-	TO-247	650	30	35	4.0	84	95	3375	76	8	90
	AKS65N1K9FMF Datasheets Marking POD Tape&reel	MP	-	TO-220F	650	30	20	3.8	136	190	1695	74	2	46
	AKS65N1K9LM	MP	-	PDFN8×8	650	30	30	3.3	140	190	1670	83.1	0.8	44
	AKS65N2M2KMF AKS65N2M2KMF	MP	-	TO-252	650	30	2	3.7	1800	2200	159	22	2.5	8.1
	AK3S60N220WMF AK3S60N220WMF	MP	-	TO-247	600	30	130	4.3	15.5	22	11165	173	20	278
	AK3S65N370WMF AK3S65N370WMF	MP	-	TO-247-3L	650	30	65	4.0	29	37	7185	103	16	160
	AK3S60N221WMF AK3S60N221WMF	MP	-	TO-247	600	30	100	4.3	18.5	22.1	9820	160	7	245
	AK3S60N680WMF AK3S60N680WMF	MP	-	TO-247	600	30	35	4.0	56	68	3240	60	3.5	83
	AK3S60N355TMF AK3S60N355TMF	MP	-	TOLL	600	30	63	4.0	32	35.5	3975	90	33	136
	AKS65N1K9PMF AKS65N1K9PMF	MP	-	TO-220	650	30	21	3.8	144	190	1695	74	2	46
	AK3S60N1K8FMF AK3S60N1K8FMF	MP	-	TO-220F	600	30	11	4.0	140	180	1287	26	3	32
